   Mini Computers -> 4Gen CPU HTPC
Eglobal Mini PC case intel core i5 4200U dual core Fan system HDMI VGA best buy Office Computer
Eglobal Mini PC case intel core i5 4200U dual core Fan system HDMI VGA best buy Office Computer
Item No.:F2-4200U
Catalogue:EGLOBAL
Units:Unit
Simply description:Eglobal Mini PC case intel core i5 4200U dual core Fan system HDMI VGA best buy Office Computer
CPU:Onboard Intel Haswell 22nm CPU Intel Core i5-4200U 1.6GHz Max 2.6GHz
Memory:1 x SO-DIMM DDR3L Slot
Storage:MSATA+SATA
Support OS:Windows 7/Windows 8/Windows 10/Linux
WiFi:optional
Case Material:Black/Sliver/Blue color aluminum alloy
Product Dimensions:130*130*40mm
Color:Black/Sliver/Blue color aluminum alloy
OEM:Support
Quantity: Unit
eglobaltech Favorites
  Detail description
Eglobal Mini PC case intel core i5 4200U dual core Fan system HDMI VGA best buy Office Computer

You can buy sample unit to test directly if PayPal is available for you.
The link is for the following Specification: Barebone System
- No RAM
- No Storage
- AC WIFI with Dual Antennas
- Windows 10/Linux
- Including DHL/FedEx/UPS/EMS/Postage shipping

The Package includes:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Set of SATA power and data cables(for 2.5" hard drive installation)
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable

Product Highlight
- Multiple processor - Intel Core i3/i5/i7 for option as per your requirements at cheap price.
- Support HDMI and VGA dual display output synchronously.
- Full Aluminum Alloy Black color shell, palm dimension is only 130*130*40mm.
- With a silent copper cooling fan, work as long as 24 hours.
- Low consumption TDP only 15W, save much energy and eco-friendly.

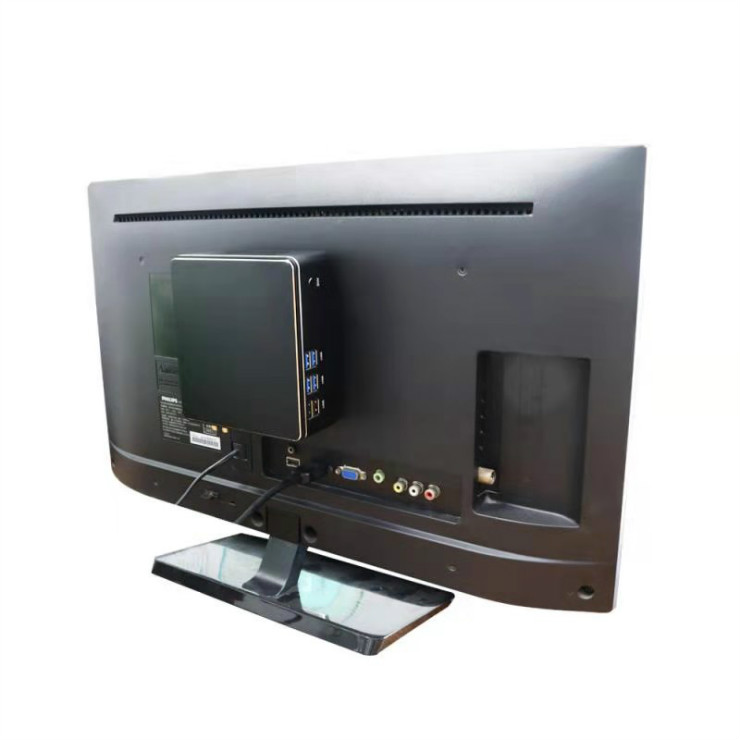

- Can be mounted back of monitor by free VESA mount.
- One Kensington Lock hole keep the computer more safe in school, office, hotel, etc.

Basic Information:
CPU Onboard Intel Haswell 22nm CPU Intel Core i5-4200U 1.6GHz Max 2.6GHz(Turbo boost Technology) Dual Core Four Threads 3MB cache TDP 15W Intel® HD Graphics 4400.
TDP Refer to the CPU
Motherboard Size 120 x 120mm customized size
BOIS AMI BIOS, ACPI supported
Chipset Refer to the CPU
Memory 1 x SO-DIMM DDR3L Slot
Support 2GB/4GB/8GB
DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333
OS Windows 7/Windows 8/Windows 10/Linux
PXE YES
Audio ALC662 sound chip, 6-channel
Intel Panther Point HDA
Network Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC
10/100Mbps/1000Mbps BaseT LAN
Video Refer to the CPU
Input/output port
Switch 1 x Power On/Off Switch
Power 1 x 12V DC In
LED 1 x LED
USB 2 x USB2.0, 4 x USB3.0
Display 1 x VGA, 1 x HDMI
LAN 1 x RJ45 Giga LAN
Audio 1 x MIC, 1 x SPK
Others 1 x Kensington Lock hole
Storage
MSATA 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module 1 x mini PCIE-half port for Wi-Fi module
Antenna 2 x inner RF cables and 1 x external antenna
Power and Working Environment
Input DC100-240V AC/50-60Hz
Output DC +12V~+19V, recommend 12V/5A
Operating Temperature 0/+70 Centigrade
Storage Temperature -20/+85 Centigrade
Relative Humidity 0%~90% (non-condensing)
Product Dimension & Details
Size 130*130*40mm
Weight Net 0.5kg, Gross 1.0kg
Shell Black/Sliver/Blue color aluminum alloy(any customized color for bulk order)
Cooling Mode With a copper cooling fan
Functions Calls on function automatically, Wake-On-LAN, Kensington Lock
Package Content
Standard 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xVESA mount
Optional Single Wi-Fi antenna, 1xHDMI cable, 1xUser Manual
