Eglobal new arrival cheap dual lan mini pc computer intel celeron N3160 Quad Core 4 Threads 2 HDMI
14nm 2M Cache Braswell Intel® Celeron® CPU N3160 processor
AIl alloy chassis, compact structure, light weight, flexible installation
2*HDMI display ports
2*Gigabit Ethernet port, supports Wake On LAN
Rich I/O: 1*Switch ON/OFF, 4*USB2.0, 2*USB3.0, 1*COM, 2*HDMI, 1* DC IN, 2*LAN (RJ-45), 1*MIC, 1*SPK port
Packing list: 1*Mini PC device, 1*EU/AM/BR/AU Power Adapter, 2*WiFi antennas, 1*Warranty Card, 1*CD Driver, 1*VESA Mount & Screws
CE, FCC, ROHS, BIS, Energy Star certification
1
|
General |
|
CPU |
Intel® Celeron® Processor N3160 1.6 GHz, Burst to 2.24GHz Quad Core 4 Threads |
|
BIOS Manufacturer |
American Megatrends Inc. |
|
Chipset |
Braswell SOC Single Chipset |
Memory
Memory Type |
1 x DDR3L SO-DIMM Socket
DDR3L(Low Voltage 1.35V)-1600 SDRAM, Max 8GB |
|
Storage |
1*mSATA 3.0 slot for mSATA SSD
1* SATA 3.0 slot for 2.5 inch HDD or SSD |
|
Operating System |
Windows 7/Windows 8/Windows 10/Linux, Windows 7 English(OEM Cracked) default |
|
Network |
2 x Realtek RTL8111E Gigabit LAN
Optional 300M WiFi with dual antennas |
|
Audio |
Realtek ALC662 HD Audio |
|
Video |
Intel Graphics Media Accelerator |
|

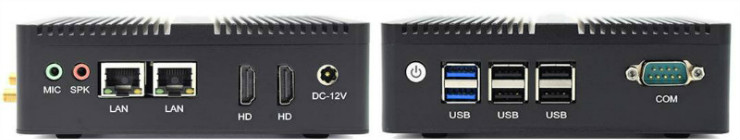

I/O port |
|

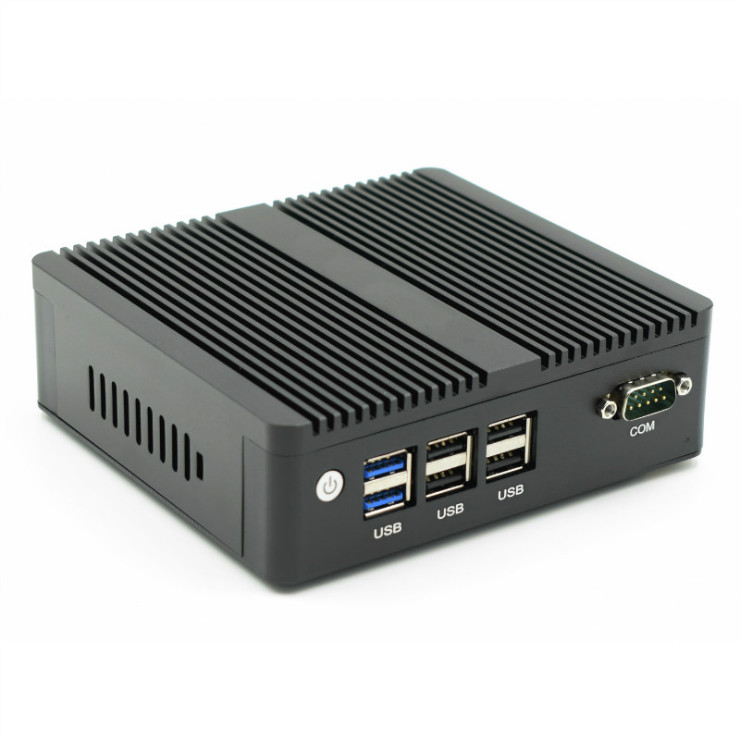

Front panel ports |
1* Switch ON/OFF, 2*USB3.0, 4*USB2.0, 1*COM |
|

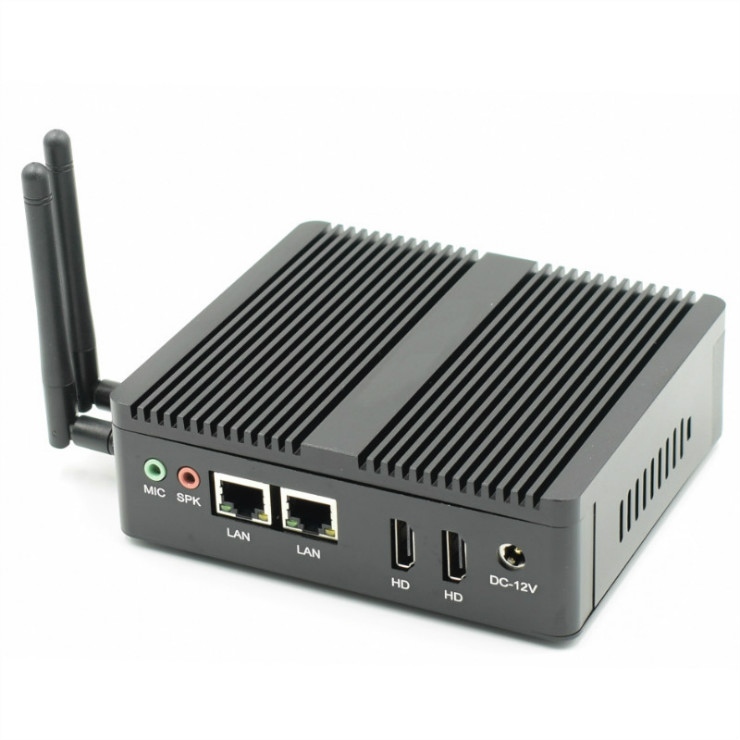

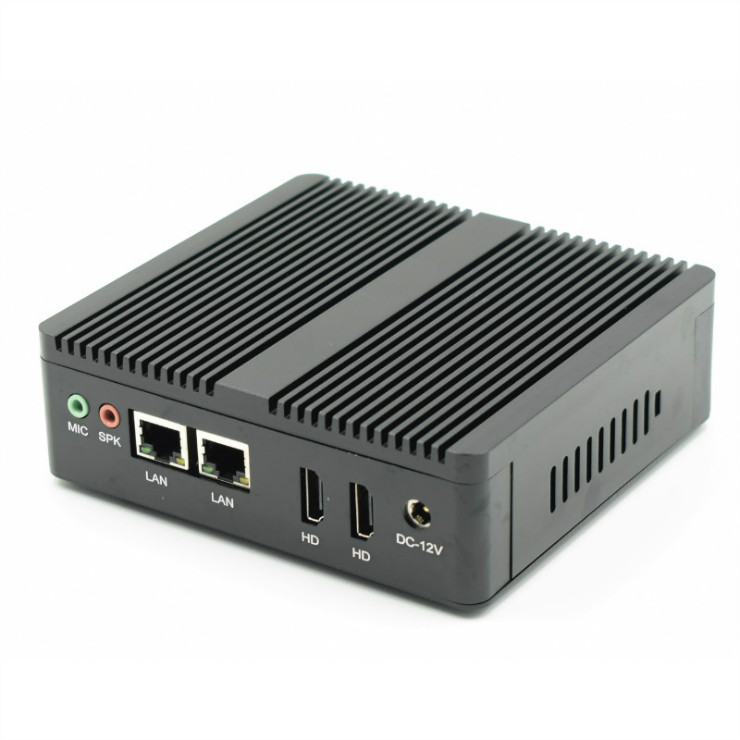

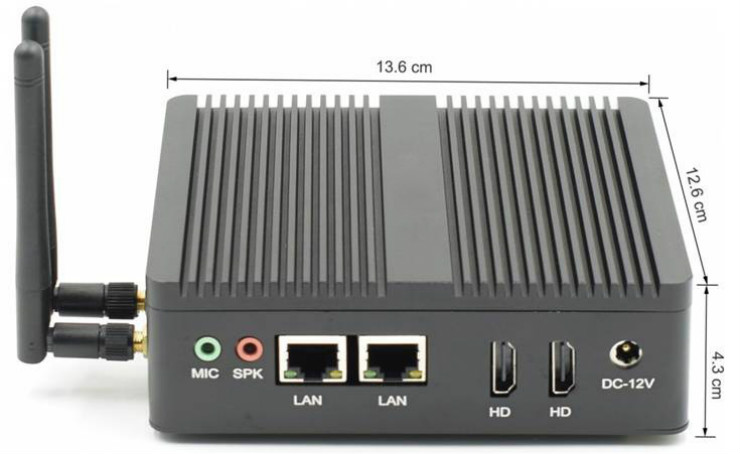

Backside ports |
1* DC IN, 2*HDMI, 2*LAN port(RJ-45), 1*MIC, 1*SPK, |
|

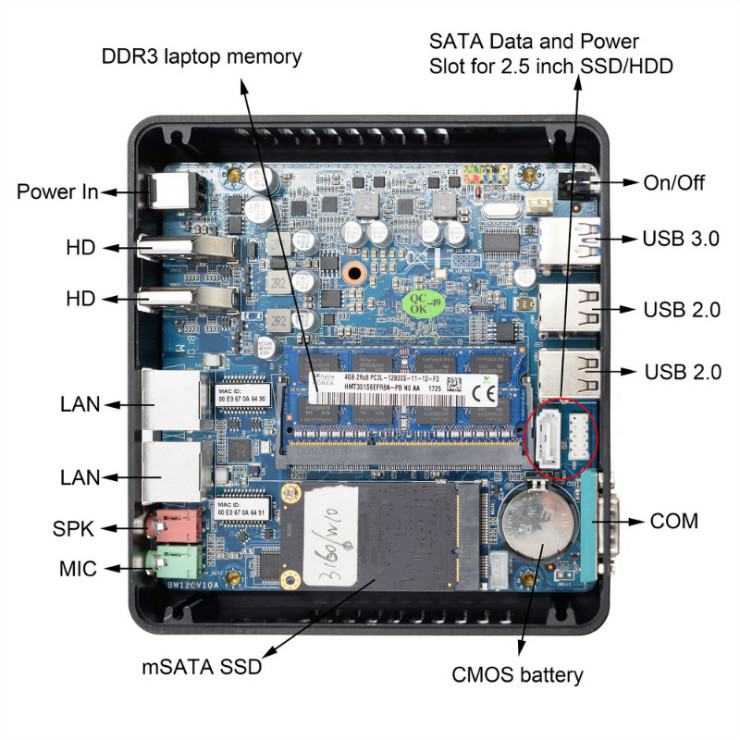

Internal ports |
1*mini-PCIE port(m-SATA SSD, 3Gbps)
1*half height Mini PCI-E Wi-Fi Module |
|
Expansion ports |
1*3 PIN CPU FAN; 1*FP; 1*COM |
|
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC 12V/3A External Power Adapter |
|
Temperature |
-10℃~55℃ |
|
Relative Humidity |
0%-95% relative humidity |
|
Watch Dog |
Yes |
|
Product Dimension & Details |
|
Size |
PC size 136*126*43mm
Package size 305*205*75mm |
|
Weight |
Net 0.75kg, Gross 1.55kg |
|
Consumption |
6W |
|
Shell |
All black aluminum alloy |
|

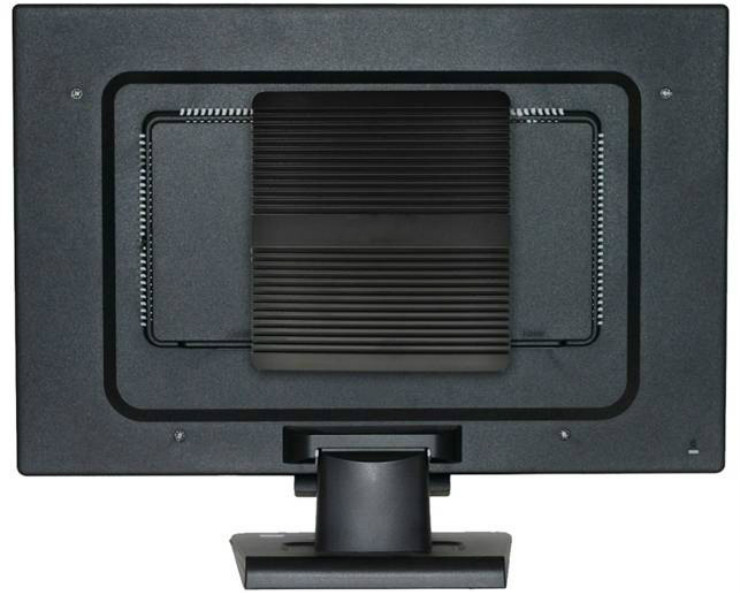

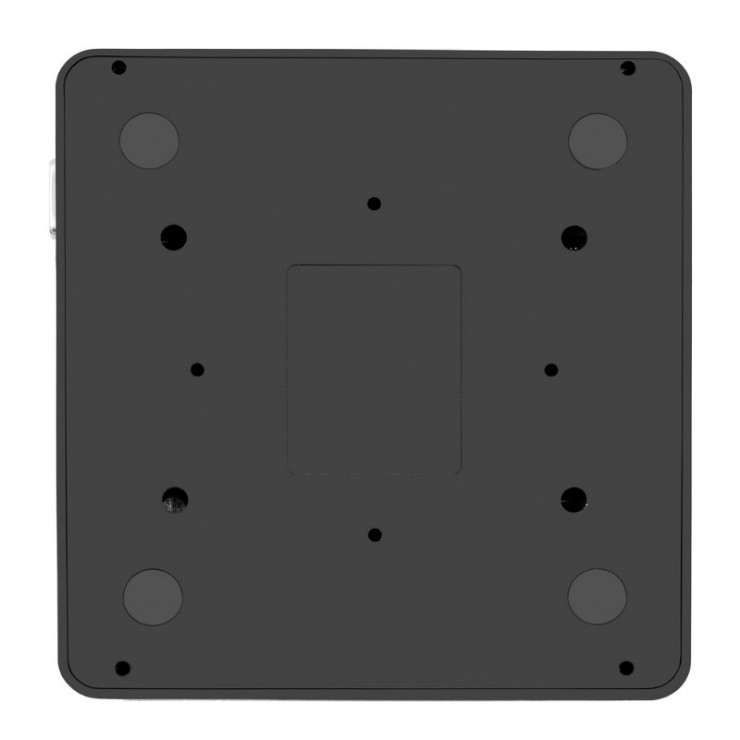

Mounting |
VESA Mounting Bracket |
|

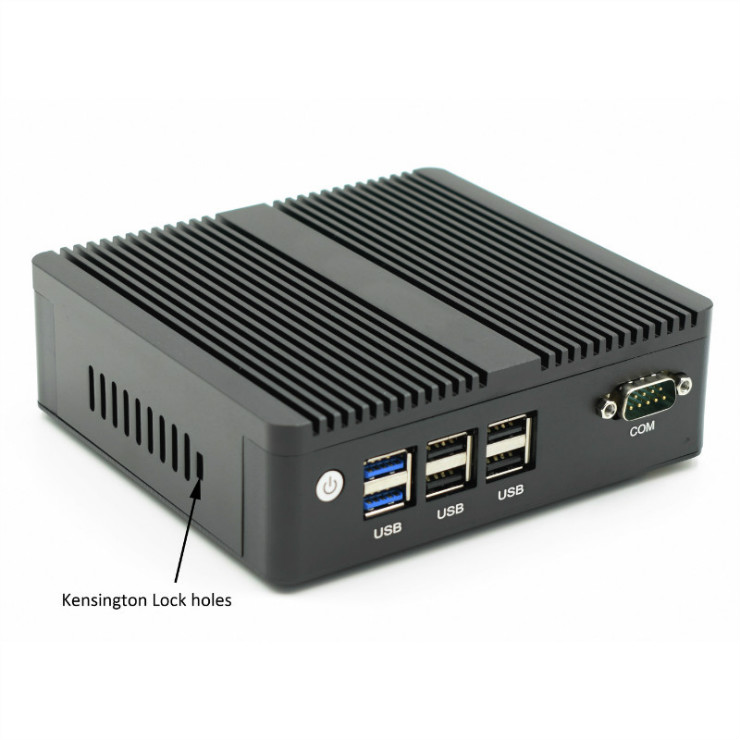

Lock |
Kensington Lock holes |
|

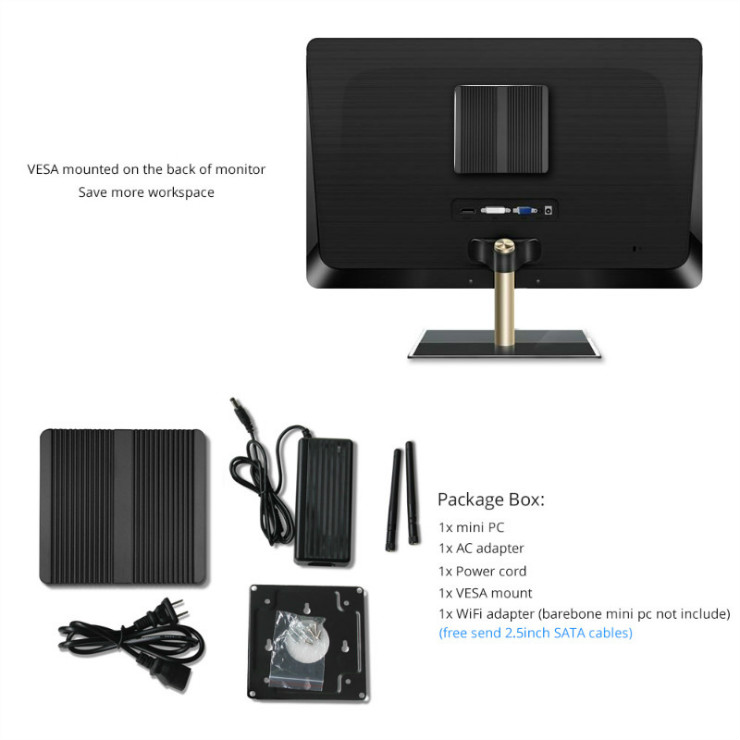

Package Content |
|
Standard |
1*Mini PC, 2*WiFi Antennas, 1*Power Adapter, 1*VESA, 1*User Manual |
|
Optional |
1*HDMI Cable, 1*HDMI to DVI Cable, 1*HDMI to VGA Cable |
|
