   Mini Computers -> 8th Gen CPU Mini Computers
Eglobal 8th Gen intel core i5 8250U mini desktop computer Support PXE RTC AWAL functions
Eglobal 8th Gen intel core i5 8250U mini desktop computer Support PXE RTC AWAL functions
Item No.:8250E
Catalogue:Eglobal
Units:pc
Simply description:Eglobal 8th Gen intel core i5 8250U mini desktop computer Support PXE RTC AWAL functions
CPU:Intel core i5 8250U
Memory:2* SO-DIMM DDR4 Slot
Hard Disk:SSD: 8G/16G/32G/64G/128G/256G/512G/1TB HDD: 160G/320G/500G/1TB
Operating System:Windows 10/Linux
Case:Silver color aluminum alloy
Product Size:208*180*45MM
OEM:Accept
Quantity: pc
eglobaltech Favorites
  Detail description

Eglobal 8th Gen intel core i5 8250U mini desktop computer Support PXE RTC AWAL functions

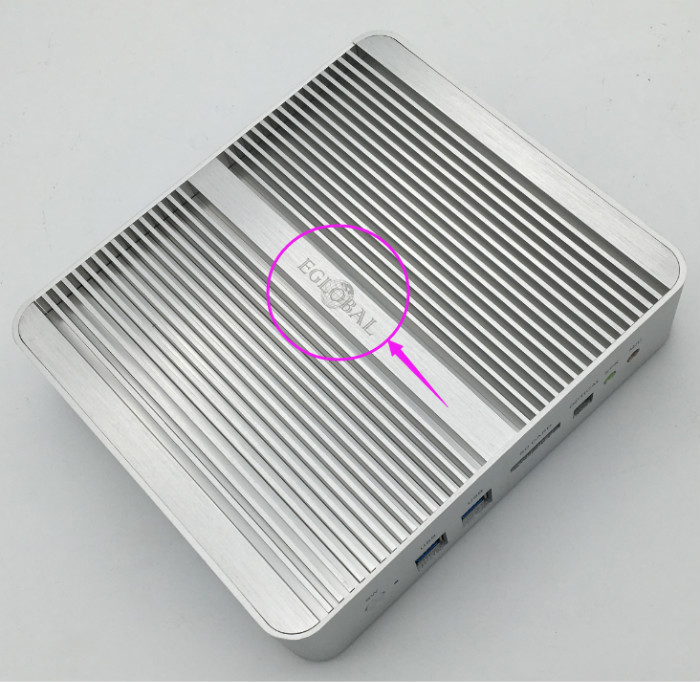

♦ Full aluminium silver color shell, Exquisite production craft on ouside design

♦ Fanless system without cooling fan and slim design 208*180*45MM

♦ Low consumption TDP only 15W

♦ Support PXE, RTC, AWAL functions

♦ Can stand up or can be mounted back of monitor or wall

♦ Can install 1pc Msata SSD and 1pc 2.5” SATA HDD together, all support 6Gb/s

♦ Package include the mini pc device, power adapter, a stand holder, a VESA mount(optional), dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag, Warranty Card

Specifications

General

CPU

Onboard Intel Core i5-8250U 1.6GHz Max 3.4GHz Quad Core Eight Threads processor

Core (FSB)

100MHz

CPU Technique

14nm

L3 Cache

6MB SmartCache, CPU Integrated

BOIS

AMI BIOS, ACPI supported

Support calls on function automatically

Support Wake-On-LAN

Chipset

Intel KABYLAKE

Memory

2* SO-DIMM DDR4 Slot

Support 4GB/8GB/16GB/32GB

Dual Channel, DDR4-2400, LPDDR3-2133

Storage

SSD: 8G/16G/32G/64G/128G/256G/512G/1TB

HDD: 160G/320G/500G/1TB

Operating System

Windows 10/Linux

Audio

ALC897 chip, 7.1 channel sound

Intel Lynx Point-LP HDA

Network

Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC

Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN

Video

Intel UHD Graphics 620

I/O port

front panel ports

1* Power indicator and switch, 4*USB2.0

Backside ports

2*WiFi antennas, 1*MIC, 1*SPK, 4*USB3.0, 1*LAN, 1*VGA, 1*HDMI, 1*DC 12V

Internal ports

1*M-SATA3.0 port, support 6Gb/s

1*M.2 SSD port, support 6Gb/s

2*SATA3.0 port, support 6Gb/s

1*mini-PCIE port(WIFI&Bluetooth)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V~19V/5A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Intel VT-x

Hyper-threading

Support Hyper-Threading

Product Dimension & Details

Size

208*180*45MM

Weight

3.0KG

Consumption

15W

Shell

Silver color aluminum alloy

Package Content

Mini PC device, power adapter, a stand holder, a VESA mount(optional), dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag, Warranty Card
