You can buy sample unit to test directly if PayPal is available for you. The link is for the following Specification:
- RAM: NO RAM
- Storage: NO Storage
- Built-in 300M WIFI
- Postage free shipping
- Fan system, with cooling fan
- Case size 108*113*30MM
The Package includes:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * HDMI Cable
1 * VESA mount&screws
Key Features:
22nm 2M Cache Bay Trail-D Intel® Celeron® CPU J1900 processor
AIl alloy chassis, compact structure, light weight, flexible installation
1*VGA and 1*HDMI display port
2*Gigabit Ethernet port, supports Wake On LAN
Rich I/O: 1*Switch ON/OFF, 3*USB2.0, 1*USB3.0, 1*VGA, 1*HDMI, 1* DC IN, 2*LAN (RJ-45), 1*MIC, 1*SPK port Packing list: 1*Mini PC device, 1*EU/AM/BR/AU Power Adapter, 2*WiFi antennas, 1*Warranty Card, 1*CD Driver, 1*VESA Mount & Screws
CE, FCC, ROHS, BIS, Energy Star certification
General |
CPU |
Onboard Intel J1900 2.0GHz Quad Core Four Thread Max 2.41GHz(Turbo boost Technology) processor |
BIOS Manufacturer |
American Megatrends Inc. |
Chipset |
Intel Bay Trail-D |
Memory
Memory Type |
1* 204-pin SODIMM Sockets for un-buffered
DDR3/DDR3L(Low Voltage 1.35V)-1333/1600 SDRAM, Max 8GB |
Storage |
1* Serial SATA 6Gb/s connectors
1* Mini-SATA 3Gb/s connectors |
Operating System |
Windows 7/Windows 8/Windows 10/Linux, Windows 7 English(OEM Cracked) default |
Network |
2*RTL8168/8111/8112 Gigabit Ethernet Controller
Optional 300M WiFi with dual antennas |
Video |
Intel(R) HD Graphics
Graphics Base Frequency 688 MHz
Graphics Max Dynamic Frequency 854 MHz
support VGA and HDMI full screen HD playback |
I/O port |

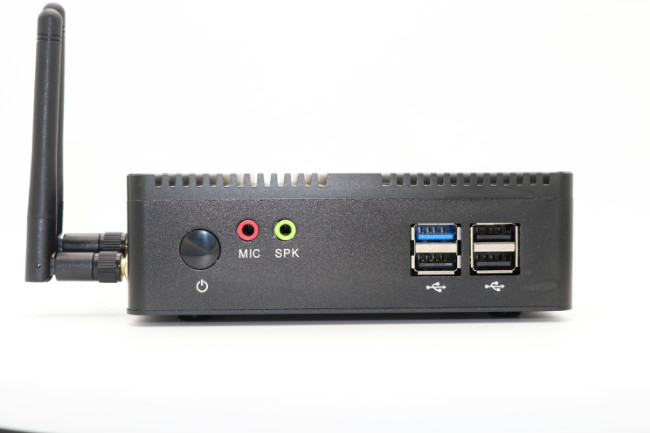

Front panel ports |
1* Power indicator and switch, 1*MIC, 1*SPK, 3*USB2.0, 1*USB3.0, |

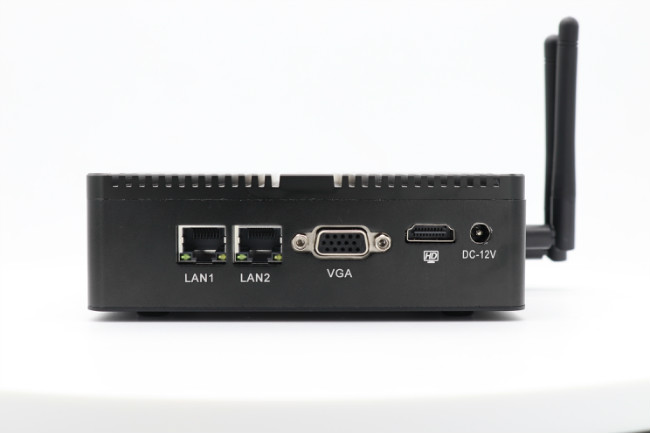

Backside ports |
1* DC IN, 1*HDMI, 1*VGA, 2*LAN port(RJ-45) |
Internal ports |
1*mini-PCIE port(m-SATA SSD, 3Gbps)
1*mini-PCIE port(WIFI/3G) |
Expansion ports |
2*COM, 1* LPT |
Power and Working Environment |
Input |
DC100-240V AC/50-60Hz |
Output |
DC 12V/5A |
Operating Temperature |
-10/60 Centigrade |
Storage Temperature |
-20/+85 Centigrade |
Relative Humidity |
10%~90% (non-condensing) |
energy-saving |
Support Energy-saving technology, Speedstep |
virtualization |
Support Virtualization technology |
64 bit computing |
Support 64 bit computing |
Product Dimension & Details |
Size |
136*126*43MM |
Weight |
1.0kg |
Consumption |
12~16W |
Shell |
All black aluminum alloy |
Package Content |
Specifications
Mini PC, Power Adapter, VESA Mount, Screws |
