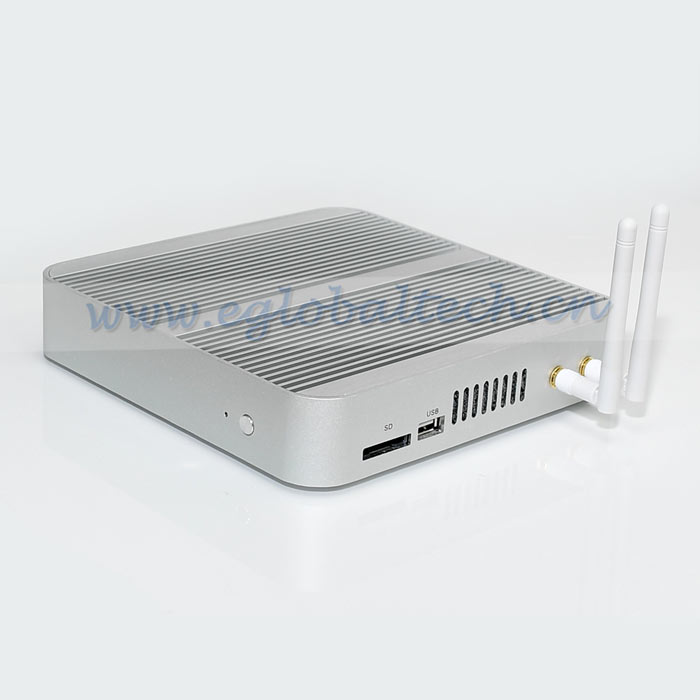

Product Name: Barebone 4K HTPC Desktop Computer Intel HD 620 Mini PC Fanless VGA HDMI Core i5 7200U Slim PC
You can buy sample unit to test directly if PayPal is available for you.
The link is for the following Specification: Barebone System
- No RAM
- No Storage
- 300M WIFI with Dual Antennas
-Windows 10/Linux
- Including DHL/FedEx/UPS/EMS/Postage shipping
The Package includes:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Set of SATA power and data cables(for 2.5" hard drive installation)
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable
1 * VESA mount(optional)
Feature:
♦ Full aluminium silver color shell, Exquisite production craft on ouside design
♦ Fanless system without cooling fan and slim design 197*197*39MM
♦ Low consumption TDP only 15W
♦ Can stand up or can be mounted back of monitor or wall
♦ Can install 1pc Msata SSD and 1pc 2.5” SATA HDD together
♦ Package include the mini pc device, power adapter, a stand holder, a VESA mount(optional), dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag, Warranty Card
Specifications
|
General |
|
CPU |
l Onboard Intel Core i3-7100U 2.4GHz Dual Core Four Thread processor
l Onboard Intel Core i5-7200U 2.5GHz Max 3.1GHz Dual Core Four Thread processor |
|
Core (FSB) |
100MHz |
|
CPU Technique |
14nm |
|
L3 Cache |
3MB SmartCache, CPU Integrated |
|
BOIS |
AMI BIOS, ACPI supported
Support calls on function automatically
Support Wake-On-LAN |
|
Chipset |
Intel SKYBAY |
|
Memory |
2* SO-DIMM DDR3L Slot
Support 4GB/8GB/16GB
Dual Channel, DDR4-2133, LPDDR3-1866, DDR3L-1600 |
|
Storage |
SSD: 8G/16G/32G/64G/128G/256G/512G/1TB
HDD: 160G/320G/500G/1TB |
|
Operating System |
Windows 7/Windows 8/Windows 10/Linux |
|
Audio |
ALC897 chip, 7.1 channel sound
Intel Lynx Point-LP HDA |
|
Network |
Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC
Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN |
|
Video |
Intel HD Graphics 620(300~1GHz) |
|
I/O port |
|
front panel ports |
1* Power indicator and switch, 4*USB3.0, 1*HDMI, 1*VGA, 1*LAN, 1*MIC, 1*SPK |
|
Backside ports |
1* SD Card, 1*USB2.0, 2*WiFi antennas |
|
Internal ports |
1*M-SATA3.0 port, support 6Gb/s
2*SATA3.0 port, support 6Gb/s
1*mini-PCIE port(WIFI&Bluetooth) |
|
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC 12V~19V/5A |
|
Operating Temperature |
0/70 Centigrade(32F~140F) |
|
Storage Temperature |
-20/+85 Centigrade |
|
Relative Humidity |
0%~90% (non-condensing) |
|
Energy-saving |
Support Energy-saving technology, Speedstep |
|
64 bit computing |
Support 64 bit computing |
|
Virtualization |
Intel VT-x |
|
Hyper-threading |
Support Hyper-Threading |
|
Product Dimension & Details |
|
Size |
197*197*39MM |
|
Weight |
2.5KG |
|
Consumption |
15W~28W |
|
Shell |
Silver color aluminum alloy |
|
Package Content |
Mini PC device, power adapter, a stand holder, a VESA mount(optional), dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag, Warranty Card |
