This PC have stopped production, if you need something similiar, please contact sunny.sales@eglobaltech.cn to get the new PC information.
You can buy sample unit to test directly if PayPal is available for you. The link is for the following Specification:
- RAM: MICRON 4GB DDR3L RAM
- Storage: RAMAXEL 64GB mSATA SSD
- 300M WIFI with Antenna
- Including DHL/FedEx/EMS/Postage free shipping
The Package includes:

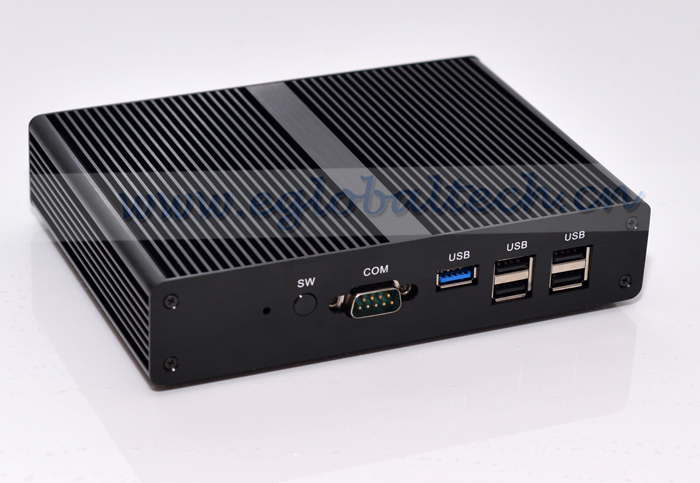

1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Stand Holder
2 * WiFi Antennas
1 * HDMI Cable
1 * VESA mount & screws(Optional)
General |

CPU |
Onboard Intel Celeron 1037u Dual Core 2 Threads 1.8GHz |
CPU(FSB) |
100MHz |
Lithography |
22 nm |
Max TDP |
17W |
L2 Cache |
2MB |
Instruction Set |
64-bit |
BOIS |
AMI BIOS, ACPI supported |
Chipset |
Intel NM76 Express High Speed Chipset |
Memory
Memory Type
Memory Channels |
1* SD-DDR3 SDRAM slot
DDR3/L/-RS 1333/1600, Max 8GB
2 |
Storage |
SSD: 8G/16G/32G/64G/128G/256G/512G
HDD: 160G/320G/500G/1TB |
Operating System |
Windows 7/Windows 8/ Windows 10/ Linux |
Audio |
ALC662 chip, 6 channel sound |
Network |
Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN
Optional 300M WIFI with dual antenna or 300M WiFi&Bluetooth |
Video |
Intel HD Graphics
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1GHz
Intel® Quick Sync Video
support VGA and HDMI full screen HD playback |
I/O port |
front panel ports |
1*RS232 COM, 1* Power indicator and switch, 4*USB2.0, 1*USB3.0 |
Backside ports |
1* DC IN, 1*HDMI port, 1*VGA port, 1* RS232 COM, 1*LAN(RJ-45), 1*MIC, 1*SPK |
Internal ports |
1*mini-PCIE port(m-SATA SSD, 3Gbps)
1*mini-PCIE port(WIFI)
1* SATA port |
Power and Working Environment |
Input |
DC100-240V AC/50-60Hz |
Output |
DC 12V~19V/5A |
Operating Temperature |
0/70 Centigrade(32F~140F) |
Storage Temperature |
-20/+80 Centigrade |
Relative Humidity |
10%~90% (non-condensing) |
energy-saving |
Support Energy-saving technology, Speedstep |
64 bit computing |
Support 64 bit computing |
virtualization |
Support Virtualization technology |
hyper-threading |
NO |
Product Dimension & Details |
Size |
175*120*35MM |
Weight |
1.0kg |
Consumption |
12~16W |
Shell |
All black aluminum alloy |
Package Content |
Mini PC, Power Adapter, VESA Mount, Screws, HDMI cable |
Certification |
CE, FCC, ROHS |
