You can buy sample unit to test directly if PayPal is available for you. The link is for the following Specification:
- RAM: MICRON 4GB DDR3 RAM
- Storage: RAMAXEL 64GB mSATA SSD
- 300M WIFI with Dual Antennas
- DHL/FedEx/UPS/EMS/Postage free shipping
Features:
- Fanless System, without fan, no noise
- Support calls on function automatically
- 29mm Ultra Thin Brushed Aluminum Alloy Case
- Support HDMI 1080P

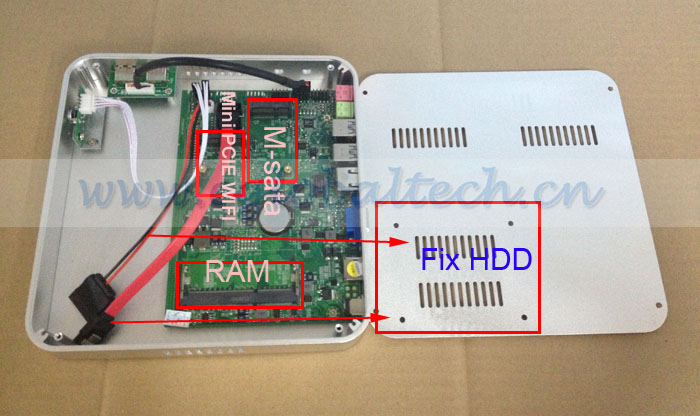

- Can install 1pc HDD and 1pc SSD together
Application:
- Living Room as Home Theater Personal Computer(HTPC). Connect your TV with the HDMI cable, you can enjoy education online and play internet movies or games.
- Internet Bar. High speed Gigabit Ethernet and diskless certificate, support 3D games.
- Office. High performance, tiny size, smart design, support Windows XP/7/ Linux system, multi USB ports for data transfer, long time working.
- Hotel Rooms. Diskless, locally run, smart design, upgrading hotel service
- As Mini Cloud Terminal Server, Max 8GB DDR3 and 1TB HDD
Package details:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable
1 * VESA mount(optional)
|
Specification:

General |
|
Processor |
Intel Celeron 1037U @1.8GHz Dual Core 2 threads |
|
Motherboard |
Intel ChiefRiver(Intel Bridge) |
|
Operating System |
Windows XP/ Windows 7/ Windows 8/ Linux |
|
Storage |
SSD: 8GB/16GB/32GB/64GB/128GB
HDD: 160GB/320GB/500GB/750GB/1TB |
|
Memory |
2GB/4GB/8GB DDR3 |
|
Model |
Intel NM65 Express High Speed Chipset |
|
Processor details |
|
CPU |
Intel Celeron 1037U @ 1.8GHz Dual Core |
|
Speed |
1.8GHz(100MHz x 18.0) |
|
Processor Number |
2 core/ 2 threads |
|
Technique |
22nm |
|
Slot |
Socket H2(LGA 1155) |
|
L1 data cache |
32 KB, 8-Way, 64 byte lines |
|
L1 code cache |
32 KB, 8-Way, 64 byte lines |
|
L2 cache |
256 KB, 8-Way, 64 byte lines |
|
L3 cache |
2 MB, 8-Way, 64 byte lines |
|
Characteristic |
MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, EIST |
|
Display Card Details |
|
Graphic Cards |
INTEL Ivy Bridge Graphics Controller(776MB/ Intel) |
|
Resolution |
Support 1920*1080 HD resolution, 32 bit color depth 60Hz |
|
Audio Cards |
Intel(R) display audio @ Intel Panther Point High Definition |
|
Network |
|
Network card |
Realtek RTL8168E PCI-E Gigabit Ethernet NIC |
|
Ethernet |
10/100/1000 Mbps Adaptive |
|
WIFI |
802.11.b/g/n(150M or 300M Optional) |
|
I/0 Port |
|
Display port |
1* VGA + 1 * HDMI |
|
USB port |
6* USB 2.0 |
|
Ethernet port |
RJ45 10/100/1000 Mbps Adaptive |
|
Power input port |
1 inner diameter 2.5mm,external diameter 5.5mm |
|
Audio port |
Standard 3.5 Audio input and output |
|
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC 12V/5A |
|
Type |
External power adapter mode |
|
Consumption |
12~16W |
|
Noise |
Fanless System |
|
Temperature |
0-70 Centigrade |
|
Humidity |
10%-85% |
|
Product Dimension |
|
Size |
197*197*29mm |
|
Slim |
29mm |
|
Net Weight |
Less than 1kg |
|
Function |
Support calls on function automatically | |
