   Mini Computers -> Fan Small PC

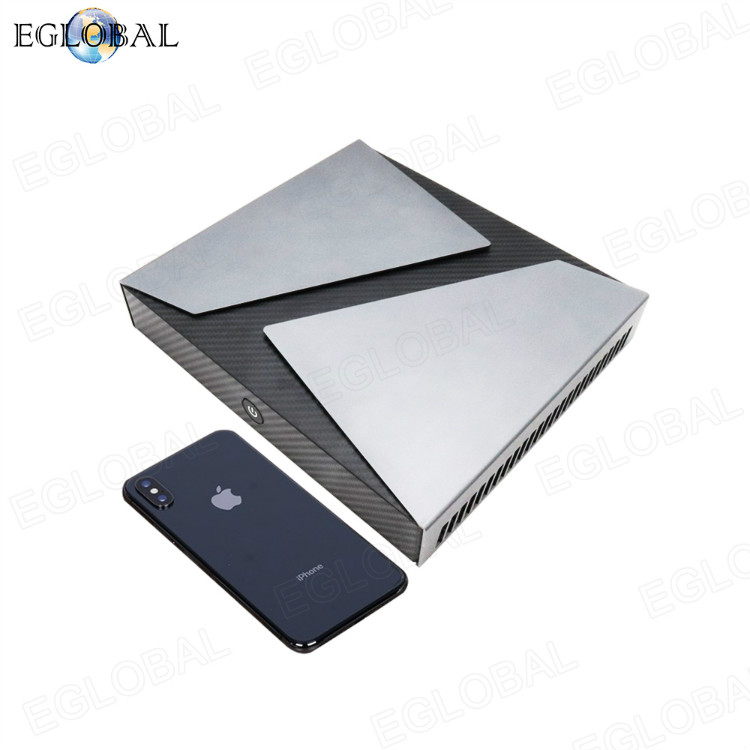

Eglobal new coffee lake mini gaming pc intel core i5 9300H UHD 630 high standard mini computer
Eglobal new coffee lake mini gaming pc intel core i5 9300H UHD 630 high standard mini computer
Item No.:F5-9300H
Catalogue:EGLOBAL
Units:unit
Simply description:Eglobal new coffee lake mini gaming pc intel core i5 9300H UHD 630 high standard mini computer
CPU:9th Gen 14nm CPU Coffee Lake Intel Core i5-9300H
Memory:Support MAX 64G
Storage:MSATA+SATA
Support OS:Windows 8.1/Windows 10/Linux
WiFi:Support
Case Material:aluminum alloy
Product Dimensions:222*195*39mm
Color:dark grey
OEM:YES
Quantity: unit
eglobaltech Favorites
  Detail description

Eglobal new coffee lake mini gaming pc intel core i5 9300H UHD 630 high standard mini computer

- Fashion creative craft design with shiny LED backlight when power.

- Onboard Intel Coffee Lake 9th generation powerful processor for online games.

- 2xSODIMM DDR4 memory slot up to 64GB more powerful performance improve work efficiency and give you a smooth experience.

- Support Dual graphics Intel UHD 630 + NVIDIA GTX 1650 4GB GDDR5.

- Support HDMI and DP for 4K display output synchronously.

- Support 1*M.2 2280 SATA/NVME/PCIE3.0x4 SSD+1*2.5'' SATA HDD/SSD.


You can buy sample unit to test directly if PayPal is available for you.
The link is for the following Specification: Barebone System

- No RAM
- No Storage
- AC WIFI with Dual Antennas
-Windows 10/Linux
- Including DHL/FedEx/UPS/EMS/Postage shipping

The Package includes:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Set of SATA power and data cables(for 2.5" hard drive installation)
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable
1 * VESA mount(optional)

Basic Information:
CPU Onboard Intel Core i5-9300H / Intel Core i7-9750H
TDP 45W
BIOS AMI BIOS
Chipset Intel/DRAM Registers - 3E10 - QM370
Memory 2 x SO-DIMM DDR4 slot, up to 64GB
Dual Channel, DDR4-2666MHz, LPDDR3-2133MHz
OS Windows 8.1/Windows 10/Linux
PXE YES
Audio Intel High Definition Audio Controller
Nvidia G70 @ Nvidia High Definition Audio Controller
Network Realtek RTL8168/8111/8112 Gigabit Ethernet Controller
10/100/1000 BaseT LAN
Video Intel UHD Graphics 630
Nvidia GeForce GTX 1650 4GB GDDR5
Input/output port
Switch 1 x Power On/Off Switch
Power 1 x 5.5mm 19V DC In
LED 1 x LED
USB 2 x USB2.0, 4 x USB3.0
Type-C 1 x Type-C USB 3.1
Display 1 x DP, 1 x HDMI
LAN 1 x RJ45 Giga LAN
Audio 3.5mm audio in / line out
Expandable 2 x SATA3.0 slot, 1 x dual channel LVDS pin, 1 x screen backlight control pin
Storage
MSATA 1 x M.2 slot for M.2 22*80 SSD, support 6Gb/s, support PCIE*4 and SATA3.0
SATA 1 x SATA3.0 slot for 7..0mm 2.5” SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module 1 x M.2 NGFF 2230 slot for Wi-Fi module, support 802.11B/G & 802.11B/G/N&AC
Bluetooth 4.0 2-in-1 WIFI & BT combo card
Antenna 2 x inner RF cables without external antennas
Power and Working Environment
Input DC100-240V AC/50-60Hz
Output DC 19V-120W
Operating Temperature 0/+70 Centigrade (32~140°F)
Storage Temperature -20/+80 Centigrade (-68~176°F)
Relative Humidity 10%~95% (non-condensing)
Product Dimension & Details
Size 222*195*39mm
Weight Net 1.3kg, Gross 2.5kg
Shell Dark gray color aluminum alloy
Cooling Mode Full copper turbo fan
Package Content
Standard 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xSATA power&data cables
Optional 1xHDMI cable, 1xUser Manual
