   Mini Computers -> 8th Gen CPU Mini Computers
Eglobal High standard 8th Gen intel core i7 8550U mini desktop computer fanless gaming PC
Eglobal High standard 8th Gen intel core i7 8550U mini desktop computer fanless gaming PC
Item No.:V7-8550U
Catalogue:Eglobal
Units:unit
Simply description:Eglobal High standard 8th Gen intel core i7 8550U mini desktop computer fanless gaming PC
CPU:Onboard Intel Core i7-8550U 1.8GHz Max 4.0GHz 4 Cores 8 Threads processor
Memory:2* SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB
Hard Disk:SSD: 8G/16G/32G/64G/128G/256G/512G/1TB HDD: 160G/320G/500G/1TB
Operating System:Windows 10/Linux
Wifi:2*WiFi antennas , 1*MIC, 1*SPK, 4*USB3.0, 1*LAN, 1*DP, 1*HDMI, 1*DC IN
Case:Black color aluminum alloy
Product Size:210*175*45MM
OEM:Accept
Quantity: unit
Buy Favorites
  Detail description

You can buy sample unit to test directly if PayPal is available for you. The link is for the following Specification:

- RAM: NO RAM

- Storage: NO Storage

- Built-in 300M WIFI

- Postage free shipping

- Fan system, with cooling fan

Eglobal High standard 8th Gen intel core i7 8550U mini desktop computer fanless gaming PC Key features:



Full aluminium black color shell, Exquisite production craft on ouside design
Fanless system without cooling fan and slim design 210*175*45MM
Low consumption TDP only 15W
Support PXE, RTC, AWAL functions

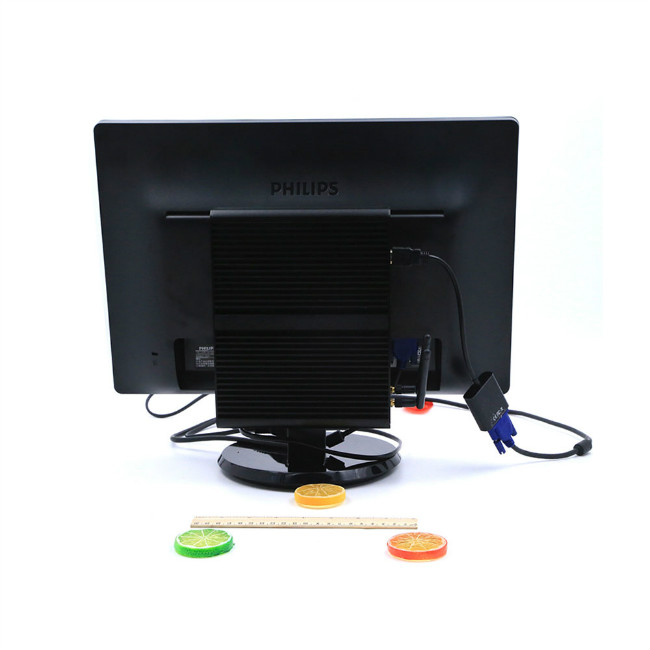

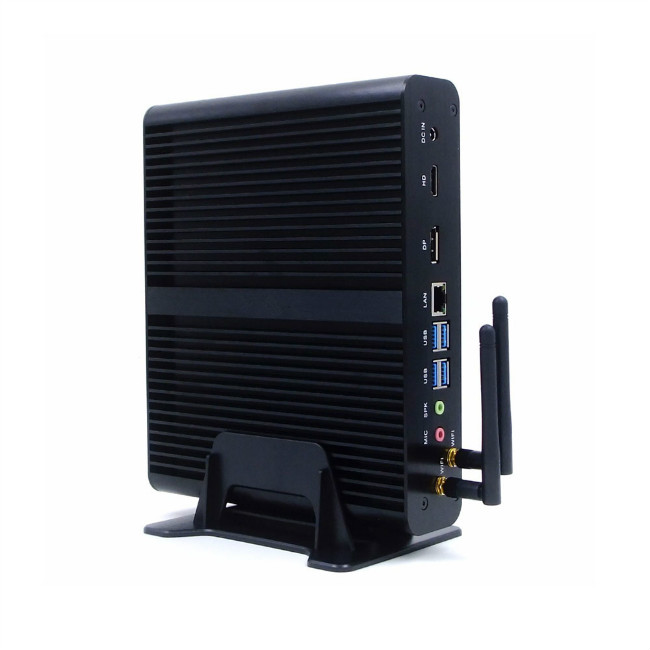

Can stand up or can be mounted back of monitor or wall
Can install 1pc M.2 SSD, 1pc Msata SSD and 1pc 2.5” SATA HDD together, all support 6Gb/s
Package include the mini pc device, power adapter, a stand holder, dual WiFi antennas(optional), a HDMI cable( as a gift), VESA mount&screws(optional), Warranty Card



Specifications

General

CPU

Onboard Intel Core i7-8550U 1.8GHz Max 4.0GHz 4 Cores 8 Threads processor

Core (FSB)

100MHz

CPU Technique

14nm

L3 Cache

8MB SmartCache, CPU Integrated

BOIS

AMI BIOS, ACPI supported

Support Wake-On-LAN

Chipset

Intel Kaby Lake R

Memory

2* SO-DIMM DDR4 Slot

Support 4GB/8GB/16GB/32GB

Dual Channel, DDR4-2400, LPDDR3-2133

Storage

SSD: 8G/16G/32G/64G/128G/256G/512G/1TB

HDD: 160G/320G/500G/1TB

Operating System

Windows 10/Linux

Audio

ALC897 chip, 7.1 channel sound

Intel Lynx Point-LP HDA

Network

Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC

Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN

Video

Intel UHD Graphics 620(300MHz~1.15GHz)

I/O port

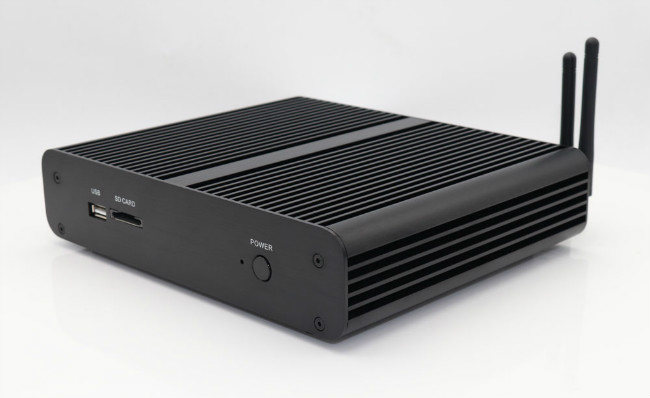

front panel ports

1* Power indicator and switch, 1*USB2.0, 1*SD Card Reader

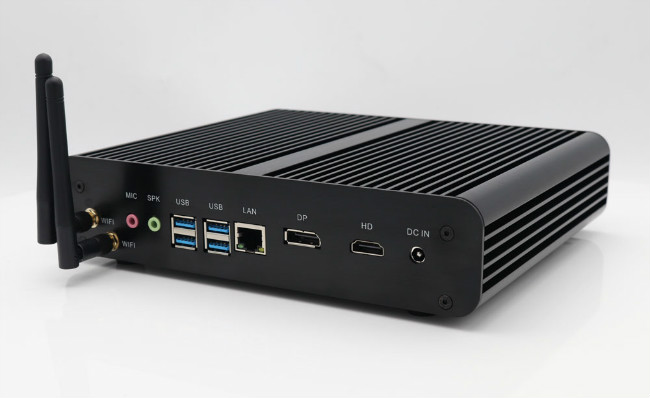

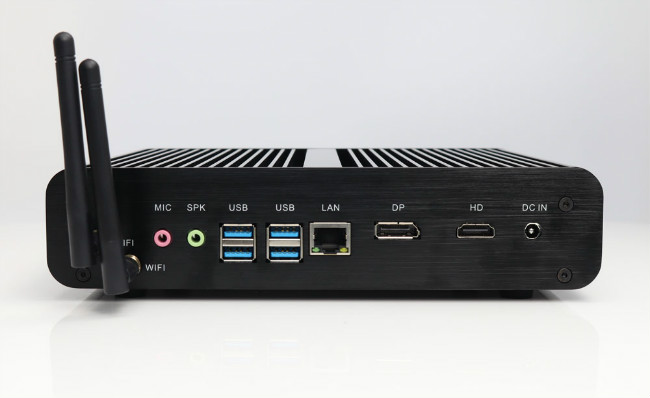

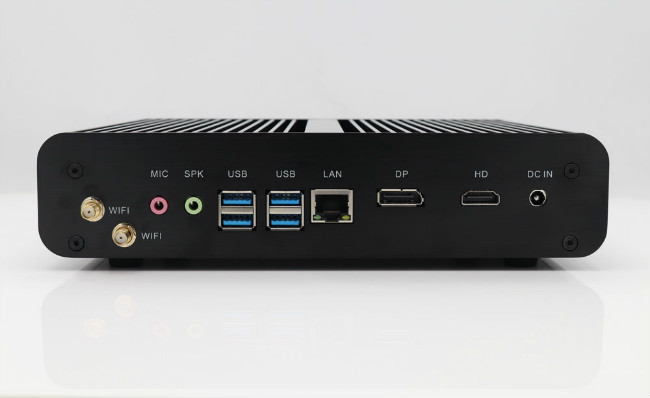

Backside ports

2*WiFi antennas , 1*MIC, 1*SPK, 4*USB3.0, 1*LAN, 1*DP, 1*HDMI, 1*DC IN

Internal ports

1*M-SATA3.0 port, support 6Gb/s

1*M.2 SSD port, support 6Gb/s

1*SATA3.0 port, support 6Gb/s

1*mini-PCIE port(WIFI&BT)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V~19V/5A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Intel VT-x

Hyper-threading

Support Hyper-Threading

Product Dimension & Details

Size

210*175*45MM

Weight

3.0KG

Consumption

15W~25W

Shell

Black color aluminum alloy

Package Content

Mini PC device, power adapter, a stand holder, dual WiFi antennas(optional), a HDMI cable( as a gift), VESA mount&screws(optional), Warranty Card
